http://www.gpstm.com/ 直至執筆, Free version 是 13.6.423
| File: gtm136.exe Type: Program Size: 13,64MB Last Upgrade: 16/05/2009 Version #: 13.6.423 |
GPS TrackMaker #13.6 with support
for embedded maps, Google Maps and vehicle tracking by GPRS. Basic version
without maps. |
點玩尼個軟件? http://www.gpstm.com/features.php
General Features- Creates, edits and deletes Tracklogs, Routes and Waypoints- Database with more than 280 different datums - The data can be stored in TXT , GTM and other formats - Calculates length, instantaneous and average speeds in tracklogs - Zoom in and Zoom out function - Moves the whole drawn map, only with the right button of the mouse - Shows on screen: the Waypoint name, comment or a comment in text box - Makes possible to change the background color, grad lines and Waypoints - Total navigation on the map image ! - Makes possible to insert several scanned map images in the background - True-Grid mode - Recognizes PCX5, Waypoint+, MapInfo®, ArcView®, and other formats. - Real Time Navigation function - Shows and Prints more than 190 different colored icons - Print in Scale - NMEA0183 Protocol for Real Time Navigation with others GPS models - Option of Name, Style and Color for Tracklogs - Catalog function that registers all the inserted images in GTM files - Autoload function of automatic loading of map images at Real Time Navigation (RTN) - Option to choose name, style and color of Tracklogs |
What is new in GPS Trackmaker® #13.6 -Address search in Google Maps window -Small changes in routine of tracklog edition -Fixed bug in WGS84 button in datum window -New version of Brazilian Detailed Map -Vehicle Tracking: Garmin FMI v2 implemented to be used with T3, in real-time -Vehicle Tracking: Complete Garmin FMI console similar to MS Outlook -Vehicle Tracking: Support for all type of messages. -Vehicle Tracking: Support for stop points -Vehicle Tracking: Support for driver names and status -Vehicle Tracking: New options to activate GPS/GPRS by events -Vehicle Tracking: Option to configure T2/T3 to pure data logger mode |

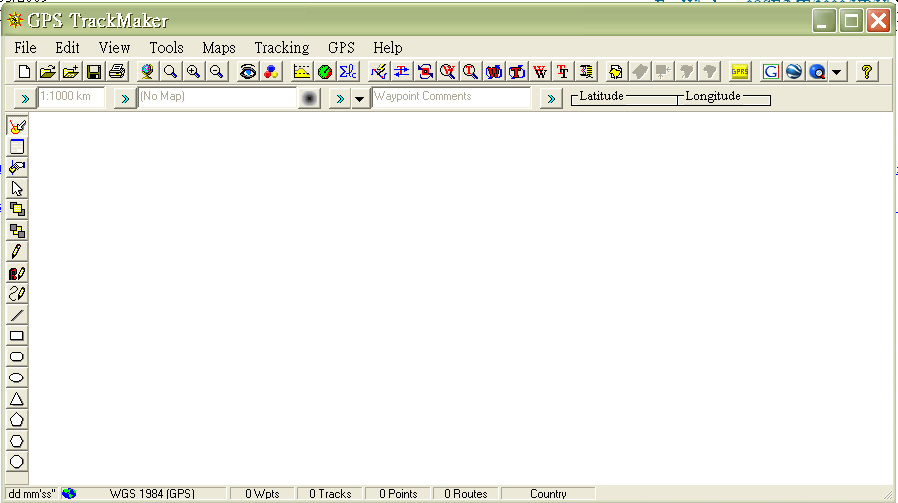

假設你 安裝咗, 而家埋位喇. 以下只教實用野.
首先你要自己 SCAN咗張地圖, 或 你問人借, 唔知邊度capture 或 下載, 跟住我地 匯入 和 較對.
較對以先, 首先要設定 'coordinate system'.

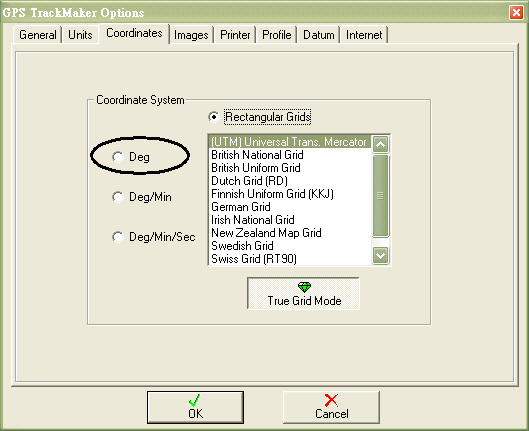

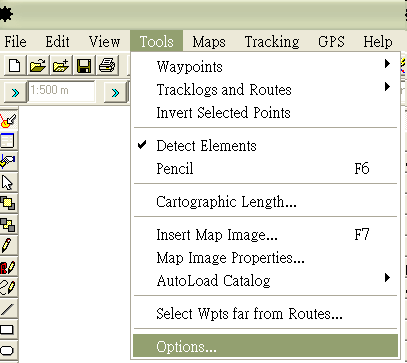

> tools > option > 選Deg, 因為我將會用 MapKing軟先 預先找出, 我想 較對 地圖 對角2個 控制點的 坐標. MapKing 的bookmark是以 十進製 顯示.
import map and calibration (請看slide. 註 : IE如果 看唔到, 請用 FireFox. 尼個係Java Clip, 新IE 某些設定下, 係自己 封左自己)
較完張圖, 先講 import GPX track log. GPX係一種 亙通 的 通用格式檔. 你地買的 GPS 接收器, 行完山, 都可以用電腦出條log做 GPX檔.
import GPX track log (請看slide. 註 : IE如果 看唔到, 請用 FireFox. 尼個係Java Clip, 新IE 某些設定下, 係自己 封左自己)
之後教另一樣 好有用東西. 首先講下MapKing, 佢只有基本 山徑, 如果係澗, 基本係無提供. 所以一係 你自己行過一次, 自己做bookmark.一係import人地. 我會提供我行過的做參考. 問題嚟喇, 如果 我有一條路線, 未玩過的澗, 點算好.
我地可以用TrackMaker,預先在電腦 point咗條路線, 跟住 匯出 做 'Waypoint + TXT' 格式, 再由PDA的MapKing 匯入呢個 text檔案, 咁MapKing無澗都變有point可以去跟. 你行山去到實際位置, 再用MapKing bookmark當時位置, 比自己用電腦 point出嚟d位, 會更加準確.
我地set point最重要係D 分源 位 入番個 Y 字, 以便係MapKing自己記得, 去到分源位. 我自己慣性用 T , + , 代表 十字路口位.
set check point and save out (請看slide. 註 : IE如果 看唔到, 請用 FireFox. 尼個係Java Clip, 新IE 某些設定下, 係自己 封左自己)
最後, 如果用我 D 相, 找位置點做.

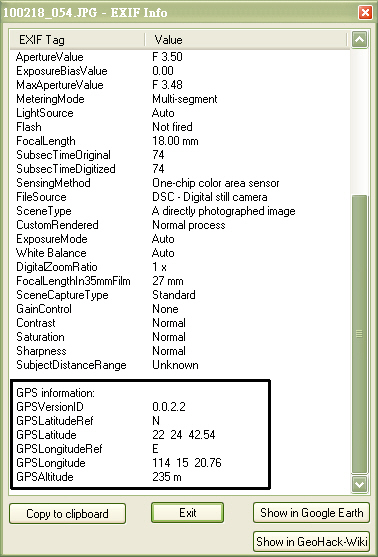

首先用一些軟件, 看相的EXIF. 尼個例子, 我用尋找 三角石河 做例子.
set waypoint (請看slide. 註 : IE如果 看唔到, 請用 FireFox. 尼個係Java Clip, 新IE 某些設定下, 係自己 封左自己)
END
